ProductConfiguratorExtension reference

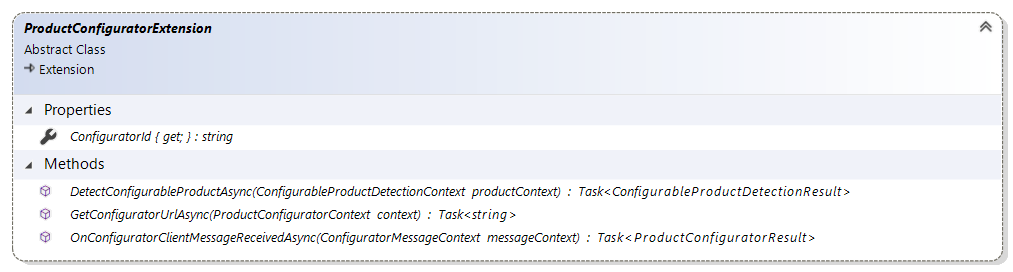

Sana.Extensions.ProductConfigurator.ProductConfiguratorExtension is an abstract class that you should implement when you develop a new product configurator extension for Sana Commerce.

Class

Properties

ConfigurationId

Gets the identifier of product configurator extension. The identifier should be unique among all other product configurator extensions. Sana will remember which products were configured by which product configurator extension using this property value.

public override string ConfiguratorId => "CustomProductConfigurator";

Methods

DetectConfigurableProductAsync

Detects whether specified product can be configured using this configurator extension.

Sana calls this method and passes the instance of ConfigurableProductDetectionContext with product information and the method returns an instance of ConfigurableProductDetectionResult which indicates whether specified product is recognized by current extension as configurable or not.

The method is called by Sana asynchronously, so you may use async/await here in case you need to access any external resources in an asynchronous way.

Example:

public override Task<ConfigurableProductDetectionResult> DetectConfigurableProductAsync(ConfigurableProductDetectionContext productContext)
{
    bool isConfigurable = productContext.ConfiguratorModel != null && productContext.ConfiguratorModel.StartsWith("my-custom-configurator:");
    var result = isConfigurable
        ? ConfigurableProductDetectionResult.Success()
        : ConfigurableProductDetectionResult.Failure();
    return Task.FromResult(result);
}

GetConfiguratorUrlAsync

Gets the URL of the external product configurator web site which will be opened in an iframe.

Sana opens the configurator web site in the iframe on the web store's page. This method is used to get the URL to open in the iframe. Sana will call this method and pass the instance of ProductConfiguratorContext with all the data needed to create the URL to the product configurator.

Example:

public override Task<string> GetConfiguratorUrlAsync(ProductConfiguratorContext context)
{
    var uri = new UriBuilder(Configuration.ConfiguratorUrl);
    var query = new QueryString("");
    query.Add("configuratorModel", context.ConfiguratorModel);
    query.Add("quantity"], context.Quantity.ToString());
    query.Add("unitOfMeasureId", context.UnitOfMeasureId);
    query.Add("productId", context.ProductId);

    uri.Query = query.ToString();

    return Task.FromResult(uri.ToString());
}

The method is called by Sana asynchronously, so you may use async/await here in case you need to access any external resources in an asynchronous way.

OnConfiguratorClientMessageReceivedAsync

Processes the message that Sana receives from the configurator web site via client browser window when it is shown in the iframe.

Sana shows the iframe and keeps listening for any messages that the configurator web site shown in the iframe might pass to the parent window. If such message is received it will be passed here to this method and Sana expects this method to parse the message and return the actual product(s) that the user has configured.

Sana calls this method and passes the instance of ConfiguratorMessageContext with the message passed from the configurator web site and the method returns an instance of ProductConfiguratorResult which contains product(s) that is (are) the actual result of the configuration which needs to be added to the shopping cart.

Example with single product result:

public override Task<ProductConfiguratorResult> OnConfiguratorClientMessageReceivedAsync(ConfiguratorMessageContext messageContext)
{
    var deserialized = JsonConvert.DeserializeObject<TestProductResult>(messageContext.MessageFromConfigurator);
    var product = new ConfiguredProduct()
    {
        ProductId = deserialized.SelectedProductId,
        VariantId = deserialized.SelectedVariantId,
        UnitOfMeasureId = deserialized.UnitOfMeasureId,
        Quantity = deserialized.Quantity,
        Description = deserialized.Description,
        ImageUrl = deserialized.ImageUrl
    };
    var result = new SingleProductConfiguratorResult(deserialized.SessionId, product);
    return Task.FromResult<ProductConfiguratorResult>(result);
}

internal class TestProductResult
{
    public string SessionId { get; set; }
    public string SelectedProductId { get; set; }
    public string SelectedVariantId { get; set; }
    public decimal? Quantity { get; set; }
    public string UnitOfMeasureId { get; set; }
    public string Description { get; set; }
    public string ImageUrl { get; set; }
}

Example with multiple (or single if there is only one item in the list) products in the result:

public override Task<ProductConfiguratorResult?> OnConfiguratorClientMessageReceivedAsync(ConfiguratorMessageContext messageContext)
{
    var deserialized = JsonConvert.DeserializeObject<TestProductResult>(messageContext.MessageFromConfigurator);

    var configuredProducts = deserialized?.Products?
        .Where(p => !string.IsNullOrEmpty(p.SelectedProductId))
        .Select(p => new ConfiguredProduct(p.SelectedProductId, p.SelectedVariantId, p.ImageUrl, p.UnitOfMeasureId, p.Quantity, p.Description))
        .ToList();

    if (configuredProducts == null || configuredProducts.Count == 0)
        return Task.FromResult<ProductConfiguratorResult?>(null);

    ProductConfiguratorResult result = configuredProducts.Count > 1
        ? new ProductListConfiguratorResult(Guid.NewGuid().ToString(), configuredProducts)
        : new SingleProductConfiguratorResult(Guid.NewGuid().ToString(), configuredProducts[0]);

    return Task.FromResult<ProductConfiguratorResult?>(result);
}

internal class TestProduct
{
    [AllowNull]
    public string SelectedProductId { get; set; }
    public string? SelectedVariantId { get; set; }
    public decimal? Quantity { get; set; }
    public string? UnitOfMeasureId { get; set; }
    public string? Description { get; set; }
    public string? ImageUrl { get; set; }
}

internal class TestProductResult
{
    [AllowNull]
    public string ConfigurationId { get; set; }

    public IEnumerable<TestProduct>? Products { get; set; }
}

The method is called by Sana asynchronously, so you may use async/await here in case you need to access any external resources in an asynchronous way.

Note

In case the result of the configuration has already been saved and the message has been sent only to close the iframe you must return null as result.

In our example we send the empty message:

public override Task<ProductConfiguratorResult> OnConfiguratorClientMessageReceivedAsync(ConfiguratorMessageContext messageContext)
{
    if (string.IsNullOrEmpty(messageContext.MessageFromConfigurator))
        return Task.FromResult<ProductConfiguratorResult>(null);

    var deserialized = JsonConvert.DeserializeObject<TestProductResult>(messageContext.MessageFromConfigurator);
    var product = new ConfiguredProduct()
    {
        ProductId = deserialized.SelectedProductId,
        VariantId = deserialized.SelectedVariantId,
        UnitOfMeasureId = deserialized.UnitOfMeasureId,
        Quantity = deserialized.Quantity,
        Description = deserialized.Description,
        ImageUrl = deserialized.ImageUrl
    };
    var result = new SingleProductConfiguratorResult(deserialized.SessionId, product);
    return Task.FromResult<ProductConfiguratorResult>(result);
}
